Handheld and power supply devices according to EN 50565-2.
For lightweight workshop tools that are subject to light loads.
According to EN 50565-2: dry and damp rooms; only temporary use outdoors; not for industrial/commercial or agricultural facilities, except tailors/cutting workshops; not suitable for supplying industrial power tools.
Light & sound technology.
DESCRIPTION
APPLICATION
Standards:
<HAR> cable type approval according to EN 50525-2-21
Product Make-up
Bare copper wire according to HAR
Core insulation: rubber compound, type EI 4
Outer sheath: rubber compound, type EM3
Product Make-up
Bare copper wire according to HAR
Core insulation: rubber compound, type EI 4
Outer sheath: rubber compound, type EM3
Technical Data
Coloured according to HD 308
Conductor stranding: Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Minimum bending radius: 4 to 8 x outer diameter (EN 50565-1)
Nominal voltage: U0/U: 300/500 V
Test voltage: 2000 V
Protective conductor: G = with GN-YE protective conductor, X = without protective conductor
Current rating: According to IEC 60364-5-52/ VDE 0298-4, EN 50565-1/ VDE 0298-565-1
Temperature range: Flexible use: -25°C to +60°C
Conductor stranding: Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Minimum bending radius: 4 to 8 x outer diameter (EN 50565-1)
Nominal voltage: U0/U: 300/500 V
Test voltage: 2000 V
Protective conductor: G = with GN-YE protective conductor, X = without protective conductor
Current rating: According to IEC 60364-5-52/ VDE 0298-4, EN 50565-1/ VDE 0298-565-1
Temperature range: Flexible use: -25°C to +60°C
SPECIFICATIONS
Low Voltage
Working Temperature 70℃
Cold Resistant -25℃
CONSTRUCTION
- Conductor:Class 5 Flexible Stranded Copper
- Insulation:EPR (Ethylene Propylene Rubber)
- Outer sheath:Rubber
PARAMETER

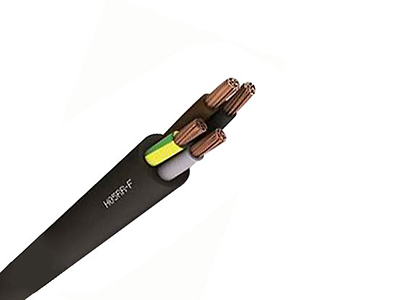

- H05RR-F
| Number of cores and mm² per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| 2 X 0.75 | 5.7 - 6.7 | 14.4 | 61 |
| 3 G 0.75 | 6.2 - 7.4 | 21.6 | 75 |
| 2 X 1.0 | 6.1 - 7.3 | 19.2 | 73 |
| 3 G 1.0 | 6.5 - 7.7 | 28.8 | 86 |
| 4 G 1.0 | 7.1 - 8.5 | 38.4 | 105 |
| 2 X 1.5 | 7.6 - 8.8 | 28.8 | 115 |
| 3 G 1.5 | 8.0 - 9.4 | 43.2 | 135 |
| 4 G 1.5 | 9.0 - 10.4 | 57.6 | 165 |
| 5 G 1.5 | 9.8 - 11.4 | 72 | 190 |
| 2 X 2.5 | 9.0 - 10.4 | 48 | 160 |
| 3 G 2.5 | 9.6 - 11.2 | 72 | 190 |
| 4 G 2.5 | 10.7 - 12.3 | 96 | 235 |
| 5 G 2.5 | 11.9 - 13.7 | 120 | 285 |
