DESCRIPTION
APPLICATION
These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.
Standards:
AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125
IEC60502-1
AS/NZS 3008
AS/NZS 1125
IEC60502-1

SPECIFICATIONS

Low Voltage

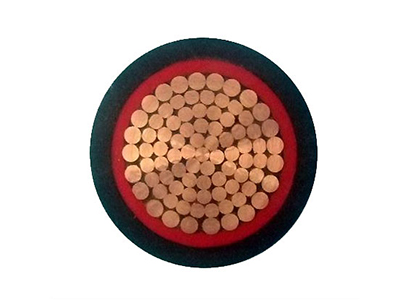

CONSTRUCTION

- Conductor:Aluminum/plain annealed copper
- Insulation:XLPE X-90
- Insulation colour:black, other colors are available upon request
- Sheath:Polyvinylchloride compound PVC 5V-90
- Sheath colour:Black, other colors are available upon request
PARAMETER
- Table 1
- Table 2
| CONDUCTOR | CURRENT RATINGS | ELECTRICAL CHARACTERISTICS | ||||||
| NOMINAL AREA MM2 | IN CONDUIT IN AIR A | BURIED IN DUCTS A | IN CONDUIT IN AIR A | BURIED IN DUCTS A | MAXIMUM DC RESISTANCE @20°C OHM/KM | MAXIMUM AC RESISTANCE @90°C OHM/KM | REACTANCE (TREFOIL) OHM/KM | 3 PHASE VOLTAGE DROP MV/A |
| Aluminum | ||||||||
| 16 | 70 | 74 | 74 | 86 | 1.91 | 2.45 | 0.106 | 4.25 |
| 25 | 99 | 96 | 100 | 112 | 1.20 | 1.54 | 0.102 | 2.67 |
| 35 | 116 | 118 | 121 | 134 | 0.868 | 1.11 | 0.0982 | 1.94 |
| 50 | 138 | 139 | 149 | 161 | 0.641 | 0.822 | 0.0924 | 1.43 |
| 70 | 176 | 177 | 193 | 198 | 0.443 | 0.568 | 0.0893 | 0.997 |
| 95 | 215 | 209 | 237 | 241 | 0.320 | 0.411 | 0.0868 | 0.727 |
| 120 | 253 | 241 | 281 | 278 | 0.253 | 0.325 | 0.0844 | 0.582 |
| 150 | 286 | 273 | 319 | 310 | 0.206 | 0.265 | 0.0844 | 0.482 |
| 185 | 330 | 310 | 374 | 358 | 0.164 | 0.212 | 0.0835 | 0.394 |
| 240 | 396 | 369 | 440 | 428 | 0.125 | 0.162 | 0.0818 | 0.314 |
| 300 | 457 | 428 | - | 482 | 0.100 | 0.130 | 0.0809 | 0.266 |
| 400 | 534 | 487 | - | 567 | 0.0778 | 0.103 | 0.0802 | 0.226 |
| 500 | 616 | 578 | - | 653 | 0.0605 | 0.0813 | 0.0796 | 0.197 |
| 630 | 726 | 663 | - | 770 | 0.0469 | 0.0649 | 0.0787 | 0.177 |
| Copper | ||||||||
| 16 | 86 | 95 | 95 | 112 | 1.15 | 1.47 | 0.106 | 2.550 |
| 25 | 121 | 123 | 127 | 144 | 0.727 | 0.927 | 0.102 | 1.620 |
| 35 | 138 | 150 | 160 | 171 | 0.524 | 0.668 | 0.098 | 1.170 |
| 50 | 171 | 182 | 193 | 209 | 0.387 | 0.494 | 0.092 | 0.872 |
| 70 | 209 | 225 | 242 | 257 | 0.268 | 0.342 | 0.089 | 0.615 |
| 95 | 253 | 268 | 286 | 310 | 0.193 | 0.247 | 0.087 | 0.457 |
| 120 | 297 | 310 | 341 | 358 | 0.153 | 0.197 | 0.084 | 0.373 |
| 150 | 341 | 353 | 385 | 401 | 0.124 | 0.160 | 0.084 | 0.316 |
| 185 | 391 | 401 | 440 | 465 | 0.099 | 0.129 | 0.084 | 0.269 |
| 240 | 462 | 471 | 523 | 546 | 0.075 | 0.099 | 0.082 | 0.227 |
| 300 | 534 | 546 | - | 621 | 0.060 | 0.080 | 0.081 | 0.202 |
| 400 | 616 | 621 | - | 717 | 0.047 | 0.065 | 0.080 | 0.183 |
| 500 | 715 | 717 | - | 813 | 0.037 | 0.053 | 0.080 | 0.170 |
| 630 | 836 | 813 | - | 952 | 0.028 | 0.043 | 0.079 | 0.159 |
