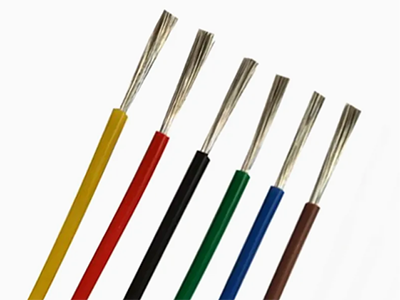

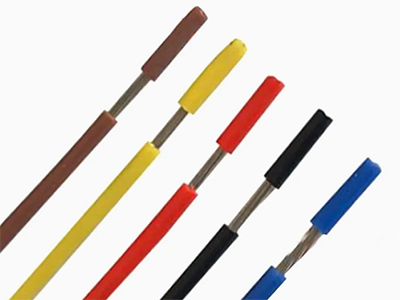

FEP/PFA/ETFE/PTFE High Temperature Wire UL1709 Electrical Flexible Wire PFA Coated Tinned Copper Wire for Heater Home Appliance Light Industrial Power
Feature:
DESCRIPTION
Basic Info.
Model NO.
UL1709
Conductor Material
Copper
Sheath Material
PC
Insulation Material
FEP
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, RoHS
Brand
Bort
Sample
Free Sample Available
Packaging
610m/Roll
Color Available
Any Colors
Delivery Time for Samples
3-5days
Delivery Time for Mass Production
7-30days
Appliance
Internal Wiring of Electronic&Electrical Equipment
Standard of Production
RoHS & Reach
Factory Management Standard
ISO9001:2008
Annual Capacity
300,000kms
Transport Package
Roll or Spool Packing, Stretch Film Wrapping, Car
Specification
customize
Trademark
Bort
Origin
Zhangzhou
HS Code
8544492900
Production Capacity
300000km/Year
Product Description
PRODUCT DESCRIPTION:
Rated temperature:200ºC
Rated voltage:300V
According to:UL Subject758,UL1581,C22.2
Nickel /silver/bare copper conductor
PFA Insulation
Passes UL VW-1& FT1 vertical flame test
Uniform insulation thickness of wire to ensure easy stripping and cutting
For general purpose internal wiring of appliance
| AWG | NO.of Cond | Conductor resistance 20ºC | Conductor Dia | Insulation Thickness | Overall Diameter | ||
| (mm) | (Ω/KM) | (mm) | (mm) | (mm) | |||
| Nom. | Min. | Min. | Max. | ||||
| 20 | 19/0.19 | 36.70 | 0.95 | 0.15 | 0.13 | 1.25 | ±0.10 |
| 22 | 19/0.15 | 59.40 | 0.76 | 0.15 | 0.13 | 1.05 | ±0.10 |
| 24 | 7/0.20 | 94.20 | 0.61 | 0.15 | 0.13 | 0.90 | ±0.10 |
| 26 | 7/0.16 | 150.00 | 0.48 | 0.15 | 0.13 | 0.78 | ±0.10 |
| 28 | 7/0.16 | 227.00 | 0.32 | 0.15 | 0.13 | 0.62 | ±0.10 |
| 30 | 1/0.254 | 361.00 | 0.25 | 0.15 | 0.13 | 0.56 | ±0.10 |
Contact Us
Related Product
22 awg copper ptfe shielded wire High Temperature PTFE Cable

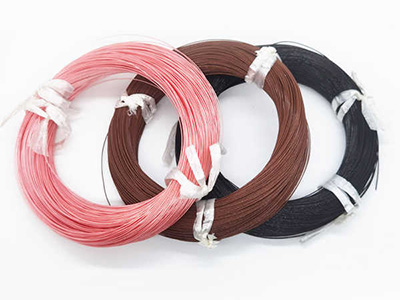

Smart 10-32 AWG FEP PTFE PFA high temperature resistant wire cable for sensor
