UL1332 Heat Resistant FEP/PTFE/PFA/ETFE 24AWG 0.22 Square Meters High Temperature 200 Degree Electronic Wire Electrical Wire
Feature:
DESCRIPTION
Basic Info.
Model NO.
UL1332
Insulation Material
FEP
Material Shape
Round Wire
Certification
ISO9001, RoHS, VDE
OEM
Yes
Color
Customized
Delivery Time
3-10days
Sample
Avaliable
Transport Package
Carton
Specification
Customized
Trademark
Bort
Origin
Fujian China
HS Code
8544492900
Production Capacity
999999meters/Month
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 15.00cm
Package Gross Weight
0.200kg
Product Description
PRODUCT DESCRIPTION:
| Rated Temperature | 200ºC | Conductor | Nickle plating or tin/bare copper conductor |
| Standard | UL Subject758,UL1581,C22.2 | Application | For general purpose internal wiring of appliance |
| AWG | NO.of Cond (mm) | Conductor resistance 20ºC (Ω/KM) | Conductor Dia (mm) | Insulation Thickness (mm) | Overall Diameter (mm) | ||
| Nom. | Min. | Nom. | Tol. | ||||
| 10 | 37/0.42 | 3.54 | 2.94 | 0.35 | 0.30 | 3.64 | ±0.15 |
| 12 | 37/0.374 | 5.64 | 2.62 | 0.35 | 0.30 | 3.32 | ±0.15 |
| 14 | 19/0.361 | 8.96 | 1.85 | 0.35 | 0.30 | 2.60 | ±0.10 |
| 14 | 1/1.163 | 8.96 | 1.63 | 0.35 | 0.30 | 2.33 | ±0.10 |
| 16 | 19/0.287 | 14.60 | 1.50 | 0.33 | 0.30 | 2.16 | ±0.10 |
| 16 | 26/0.251 | 14.60 | 1.50 | 0.33 | 0.30 | 2.14 | ±0.10 |
| 18 | 19/0.235 | 23.20 | 1.18 | 0.33 | 0.30 | 1.84 | ±0.10 |
| 20 | 19/0.19 | 36.70 | 0.95 | 0.33 | 0.30 | 1.60 | ±0.10 |
| 22 | 19/0.15 | 59.40 | 0.76 | 0.33 | 0.30 | 1.40 | ±0.10 |
| 24 | 7/0.20 | 94.20 | 0.61 | 0.33 | 0.30 | 1.26 | ±0.10 |
| 24 | 19/0.12 | 94.20 | 0.60 | 0.33 | 0.30 | 1.26 | ±0.10 |
| 26 | 7/0.16 | 150.00 | 0.48 | 0.33 | 0.30 | 1.15 | ±0.10 |
| 26 | 1/0.404 | 143.00 | 0.40 | 0.33 | 0.30 | 1.06 | ±0.10 |
| 26 | 19/0.1 | 150.00 | 0.50 | 0.33 | 0.33 | 1.15 | ±0.10 |
| 28 | 7/0.127 | 227.00 | 0.390 | 0.33 | 0.30 | 1.05 | ±0.10 |
| 30 | 7/0.1 | 361.00 | 0.300 | 0.33 | 0.30 | 0.96 | ±0.10 |
| 30 | 1/0.254 | 361.00 | 0.254 | 0.33 | 0.30 | 0.92 | ±0.10 |
Contact Us
Related Product

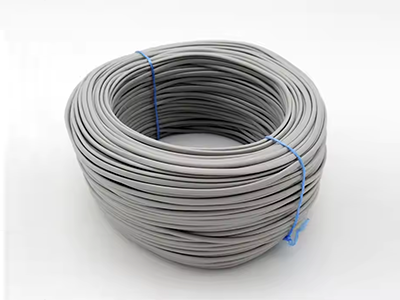

FEP/PFA/ETFE/PTFE High Temperature Wire of 26 awg Sibaixiu Technology

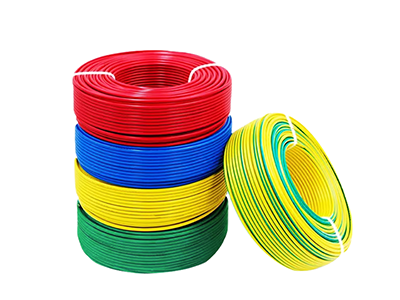

6 mm2 BV 450/750V Copper Core PVC Insulated Single Electrical Cable Wire Solid Conductor Underground Application PE IEC Roll
