DESCRIPTION
Specifications

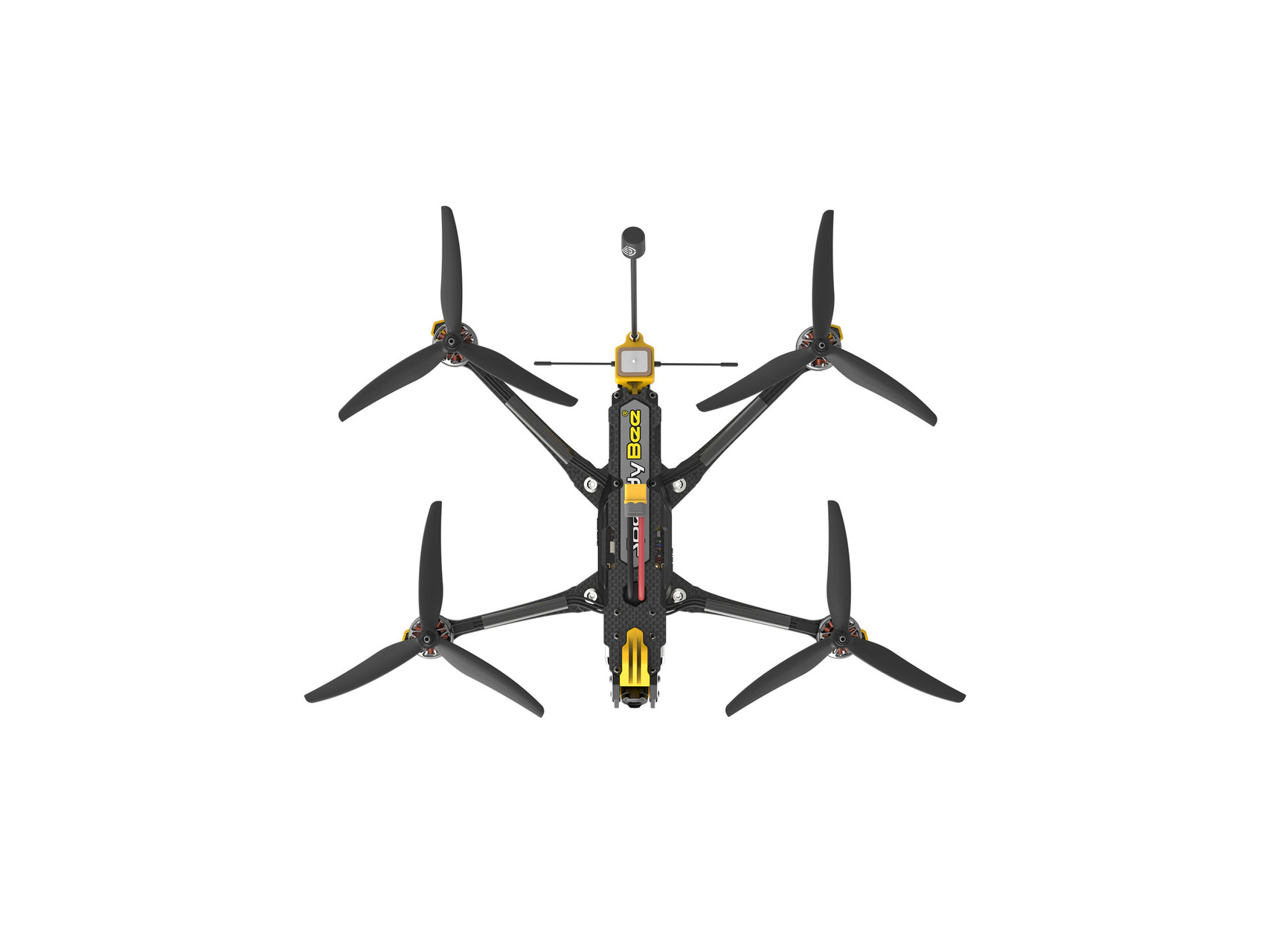

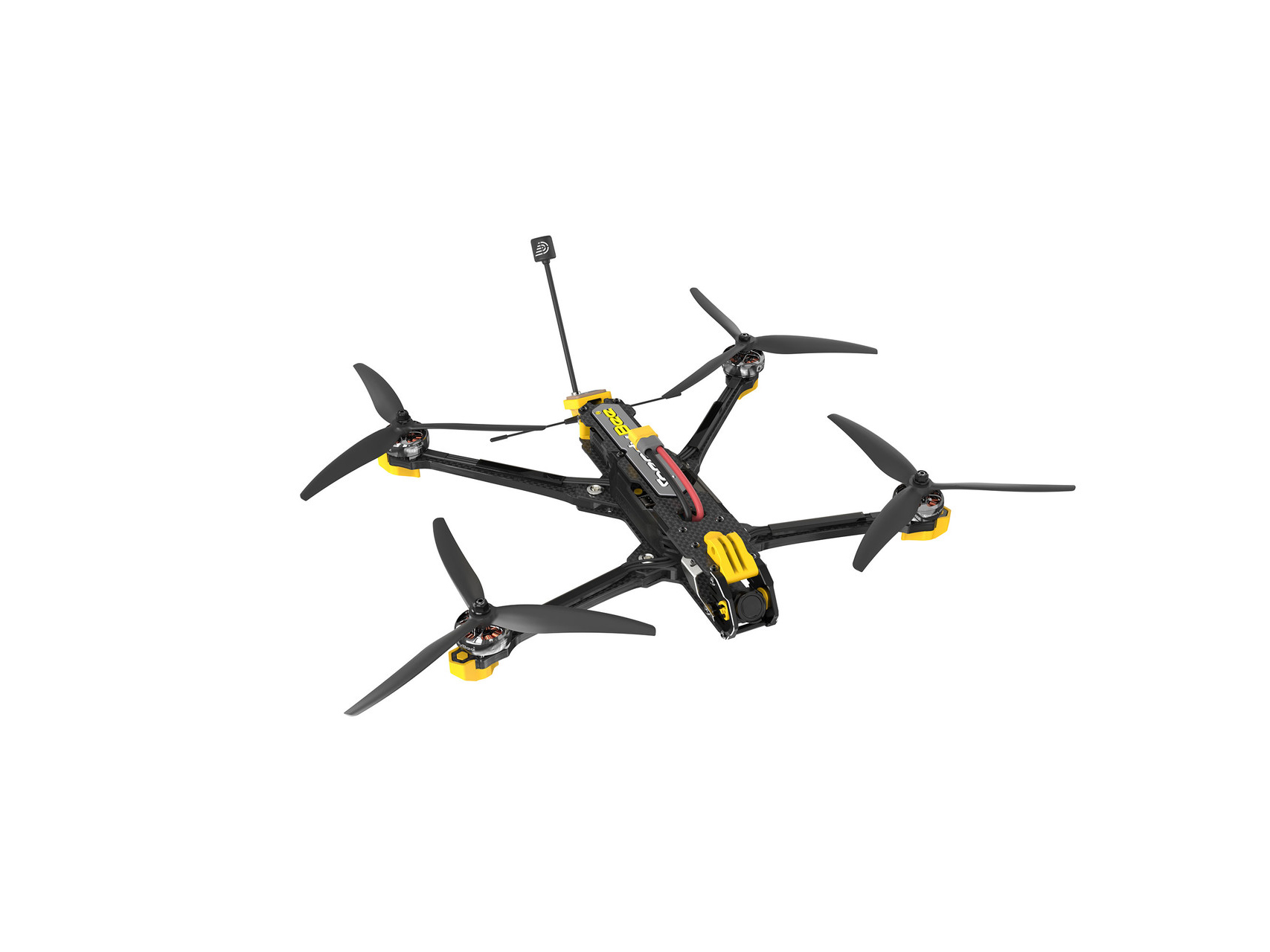

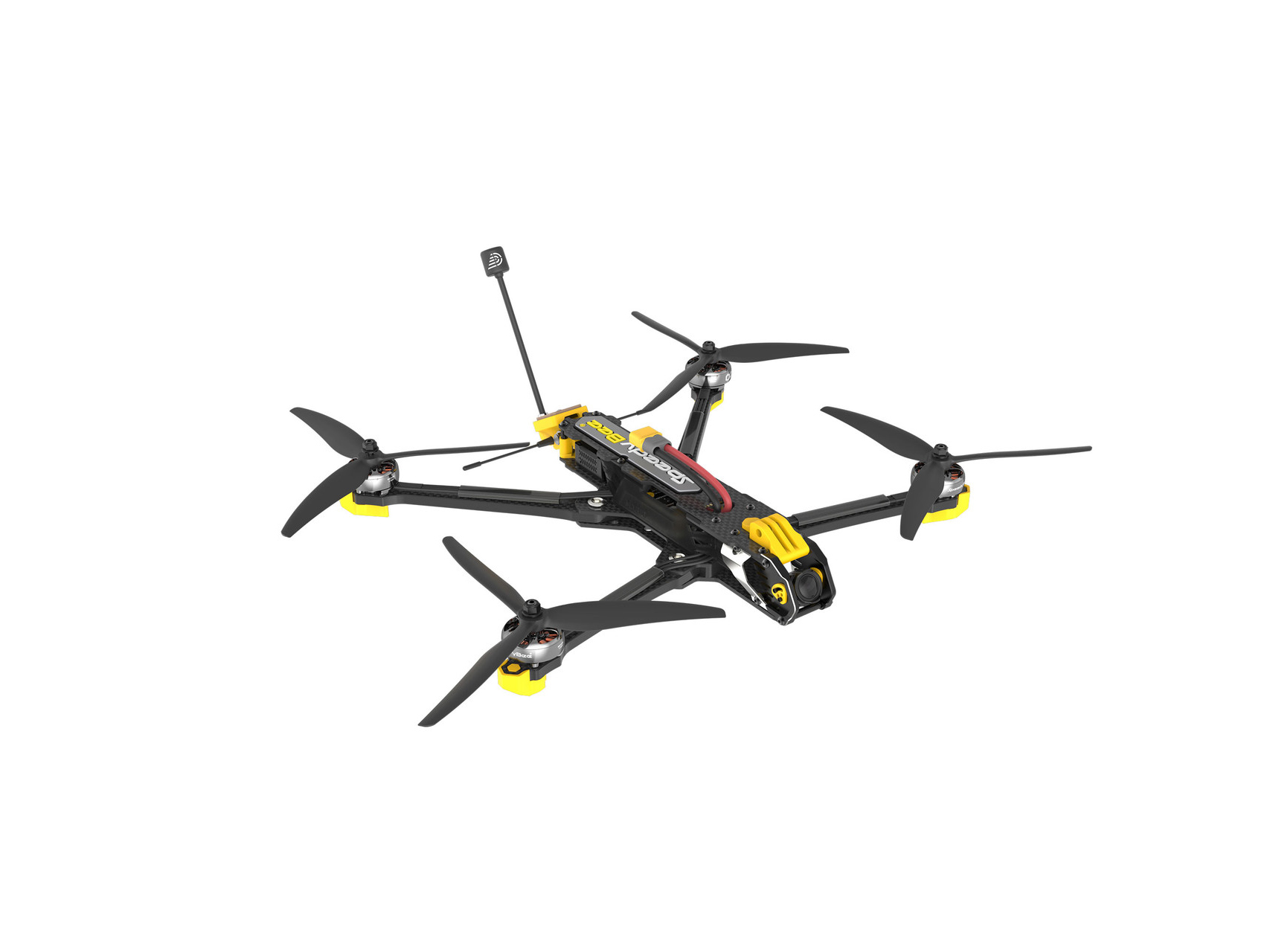

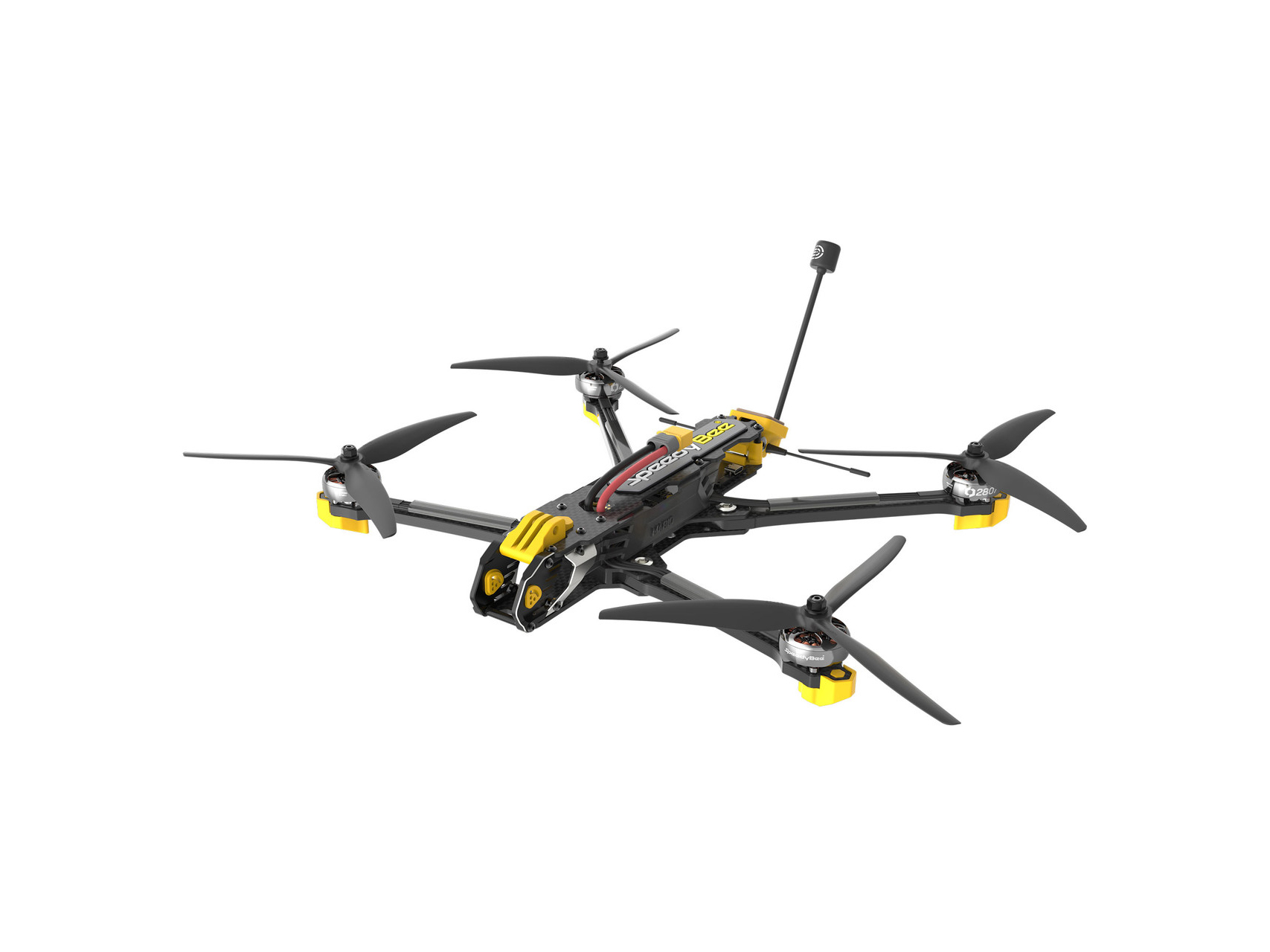

| Product Name | SpeedyBee Mario Fold 8 DC Long Range Drone |
| Wheelbase | DC FLOD:360mm Front:305mm Rear:272mm |
| Weight | MARIO Fold 8 DC O3 Kit 695g |
| Top plate thickness | 2.5mm(T300 3K) |
| Middle plate thickness | 2.5mm(T300 3K) |
| Bottom plate thickness | 3mm(T300 3K) |
| Arm thickness | 7mm(T300 3K) |
| Camera Screw | 7mm |
| 3D printed par | Yellow TPU |
| Stack side plate | PC |
| Battery Anti-skid Mat | Silicone Resin |
| Motor circlip spacing | 9mm |
| Propellers | 7-8Inch |
| Mounting holes for motors | 19mm |
| FC mounting hole | 30.5x30.5(M3) & 20x20mm (M3) |
| Drone head | 7075 CNC aluminum alloy |
| Aluminum standoff | 7075 M3*22mm (5mm&4.6mm) |
| Internal installation height | 22-31mm |
| Antenna Mounting | SMA OR MarioDJI O3 Ant CNC GPS:BZ251 25*25*8mm |
| Product Name | SpeedyBee 2807 1050KV Motor |
| KV (rpm/V) | 1050KV |
| Shaft Diameter | Φ5mm |
| Motor Mounting Hole | M3X19mm |
| Rated Voltage(Lipo) | 3-6S |
| Max. Power (60s) | 1350W |
| Idle Current | 10V/1.5A |
| Maximum Curren | 56A |
| Insulation Meterials Temperature Resistance | 240°C |
| Weight (incl. Cable) | 47 grams |
| Size | Φ34*34mm |
