DESCRIPTION
| Specification | |

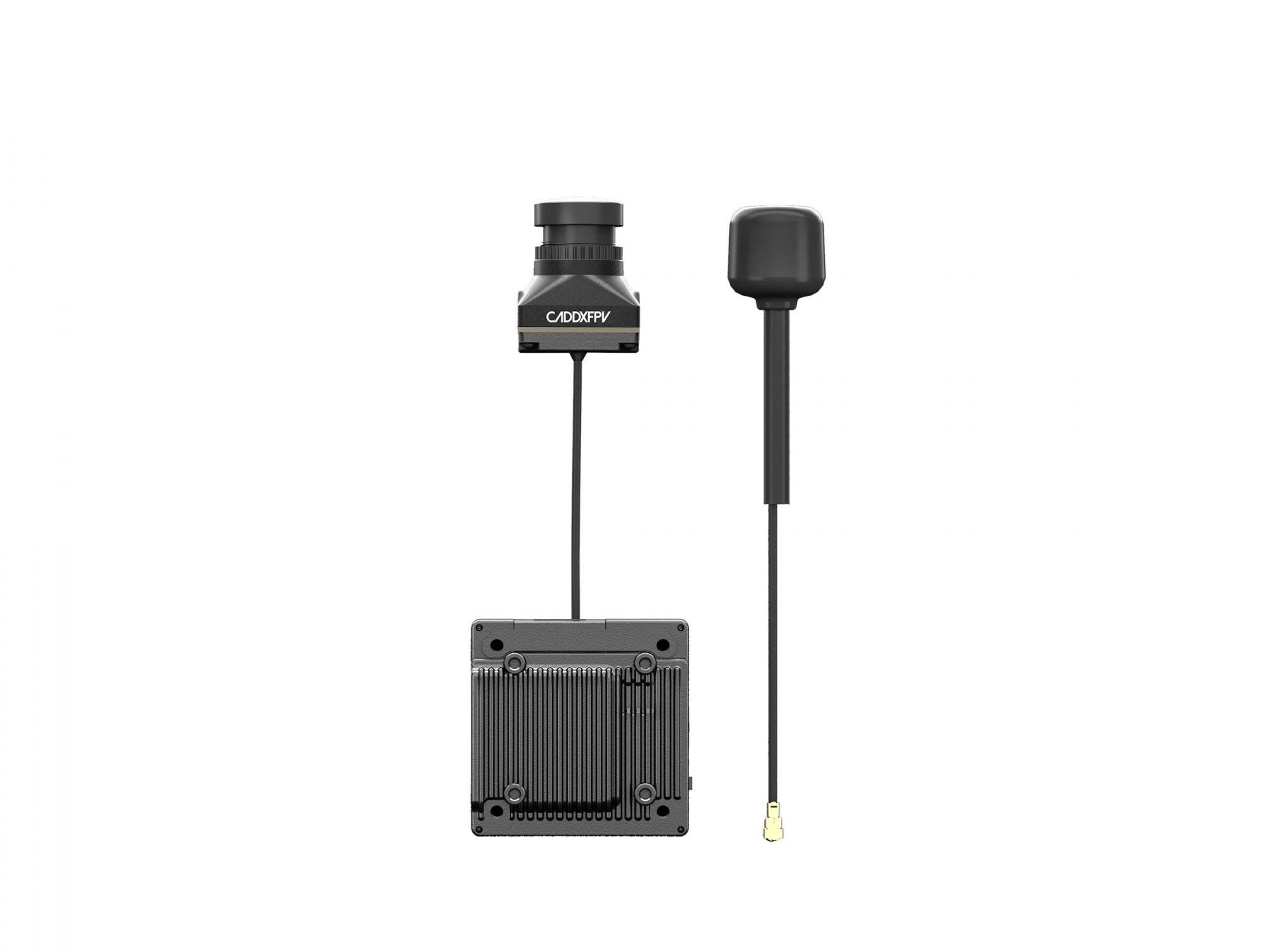

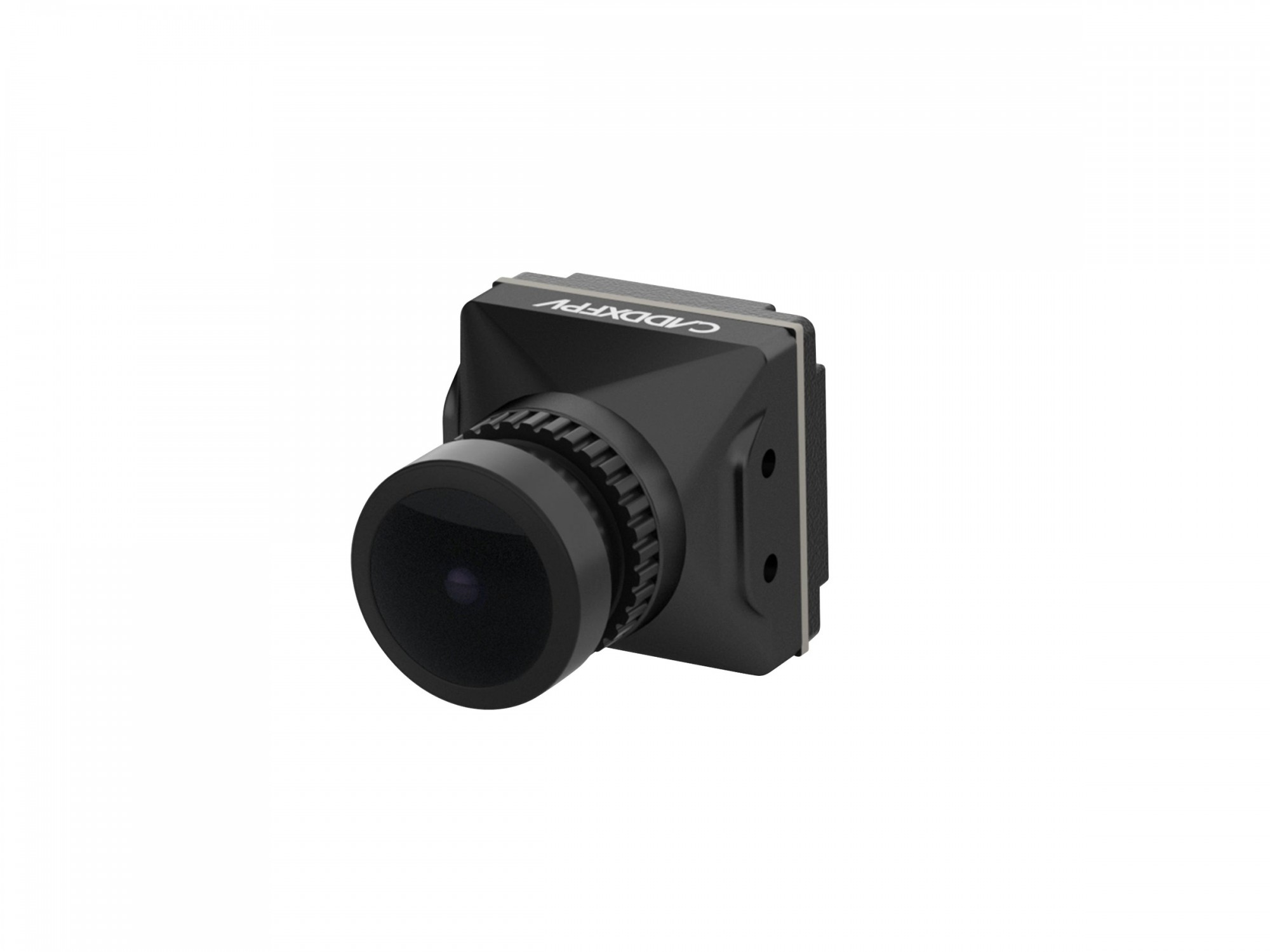

| Camera | |
| Model | Avatar HD Pro Camera |
| Image Sensor | 1/1.8-Inch Sony Starvis Ⅱ Sensor |
| Resolution | 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility; |
| Ratio | 16/9; 4/3 |
| Lens | 8Mp |
| FOV | 160° |
| Aperture | F1.6 |
| Shutter | Rolling shutter |
| Min.Illumination | 0.00001Lux |
| Weight | 9.5g |
| Dimensions | 19*19*24mm |
| Coaxial Cable | 140mm |

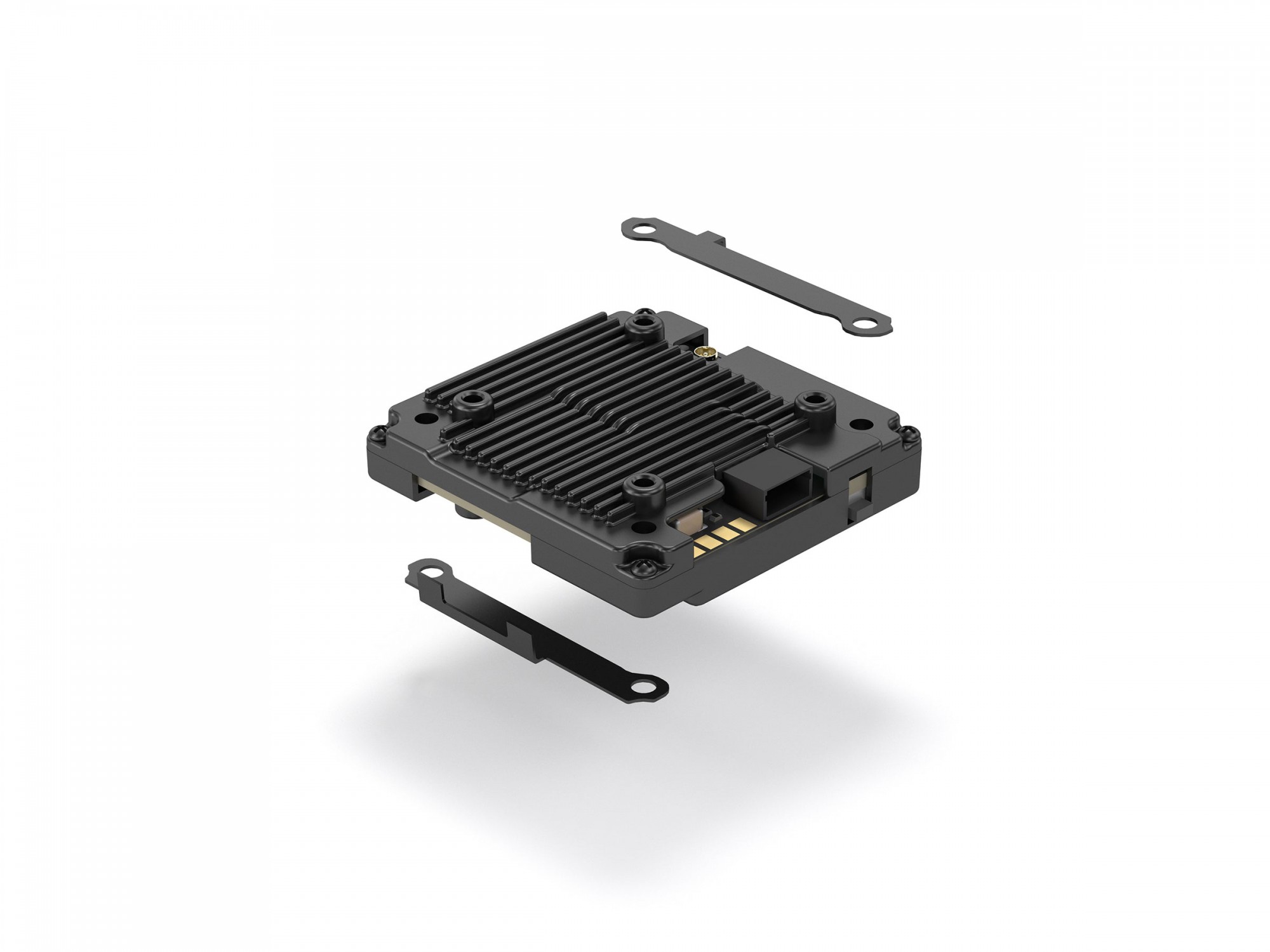

| VTX | |
| Model | Avatar V2 Module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
| Mounting Holes | 25.5*25.5mm; 20*20mm |
| Dimensions | 33.5*33.5*10.5mm |
| Storage | 8G/32G |
| Recording | 1080p/720p |
| Weight | 17.6g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 6V-25.2V |
| Supported FC System | Betaflight; Inav; Fettec; ArduPilot;Kiss |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 1(IPEX) |
| Avatar V2 Antenna | |
| Polarization | LHCP |
| Frequency range | 5600MHz-6000MHz |
| Gain | 1.9dBi |
| VSWR | ≤1.5 |
| Input Impedance | 50Ω |
| Interface | IPEX-1 |
| Size | R15 X 45mm(without cable) |
| Weight | 2g |
| Packing List | |
| USB transfer extension cable | X1 |
| 4 Pin silicone cable | X1 |
| M2*4mm screws | X8 |
| M2*5mm screws | X4 |
| M2*6mm screws | X4 |
| M2*14mm screws | X4 |
| M2*5*0.5mm gasket | X4 |
